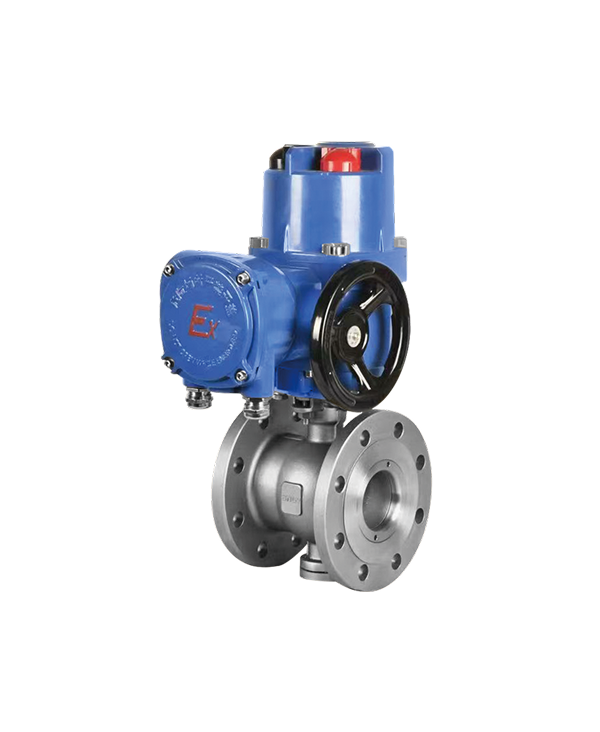

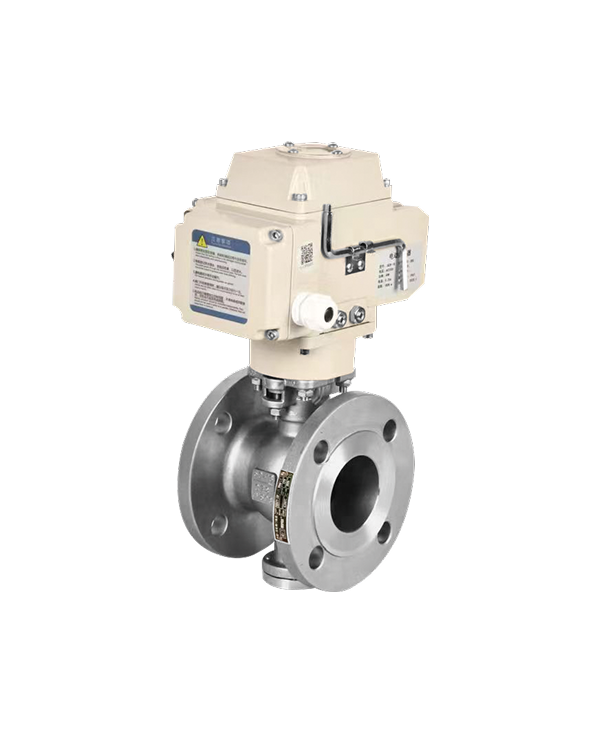

Electric V-ball valve is a control valve that combines an electric actuator and a V-ball valve structure, mainly used for regulating and controlling fluids in industrial pipeline systems.

Working principle: The working principle of an electric V-shaped ball valve is based on the combination of its V-shaped sphere and electric actuator. When the electric actuator receives a control signal, it drives the motor to rotate and converts the motor's rotation into the valve stem's rotation through the transmission device. The rotation of the valve stem further drives the ball to rotate inside the valve body. Due to the V-shaped design of the ball, the channel between it and the valve seat will gradually open or close during rotation, thereby achieving regulation and control of the medium flow rate.

Product Features

1. Accurate flow control: Due to the design of the V-shaped ball, the electric V-shaped ball valve has high precision and stability in regulating the flow rate of the medium.

2. Easy to operate: By driving with an electric actuator, precise control of valve opening and closing can be achieved, making the operation simple and fast.

Low fluid resistance: The geometric shape of the V-shaped sphere allows the medium to form a streamlined shape when passing through the valve, reducing pressure drop and valve wear.

3. Reliable sealing: Adopting a V-shaped structure design, the contact area between the ball and the valve seat is large, the sealing performance is good, and zero leakage control can be achieved.

4. Easy to maintain: Compact design, simple structure, reduced footprint, easy to install and maintain.

Applicable working conditions

The electric V-shaped ball valve is driven by an electric actuator and has the ability of automation control, remote operation, and high-precision adjustment. It is suitable for complex working conditions that require integration with industrial control systems (such as DCS, PLC) or frequent adjustment.

Its application scenarios include:

Chemical, petroleum, natural gas and other industries are used to control the flow and Pressure of fluid medium.

Used in industries such as food and pharmaceuticals to process media containing fibers or small solid particles.

Used in industries such as water treatment and papermaking to regulate the flow of water and pulp.

more parameters

Electric actuators are divided into switch type, regulating type, and intelligent type

Switch type: Only capable of fully open/fully closed control.

Adjustable type: Supports continuous adjustment through analog signals (4~20mA) or bus communication (Modbus, Profibus).

Intelligent: Built in PID controller, capable of independently completing closed-loop control.
